FCS電動天棚簾

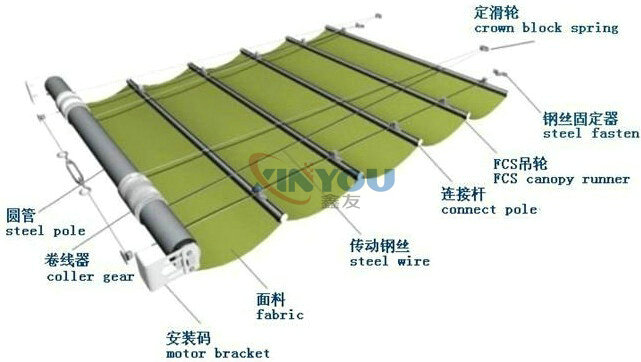

System:

Fabric Folding Single Cyclic Drawing System

Dynamic:

various of tubular motor could be adopted

Drive Mode:

steel wire transmission

Guidance System:

The guidance track or steel wire is used

Fabric choice:

Standard and sunscreen fabric

Open and close model:

single open ( double open could be realized in certain condition.)

Control Method:

wireless control, infrared control and manual switch etc. the group control and other intelligent control

mode also could be realized.

Effect:

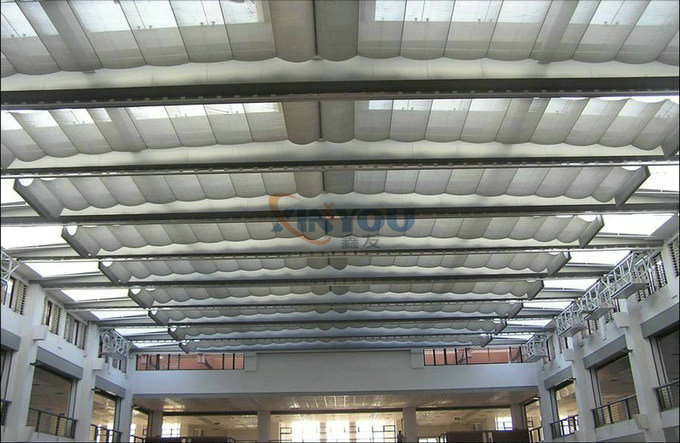

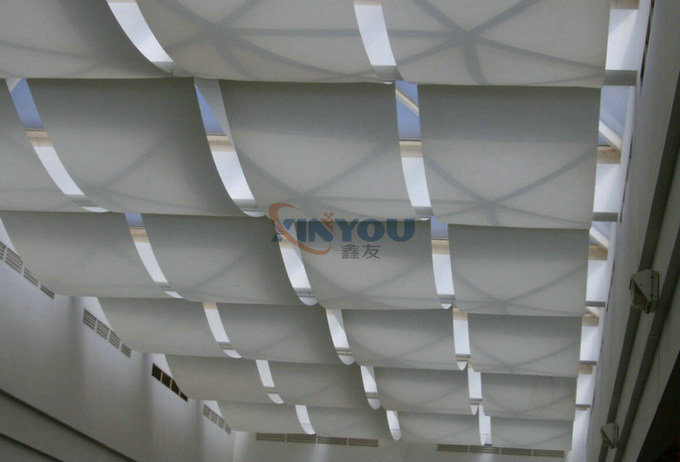

The fabric looks average wave as the roof blinds spread totally.

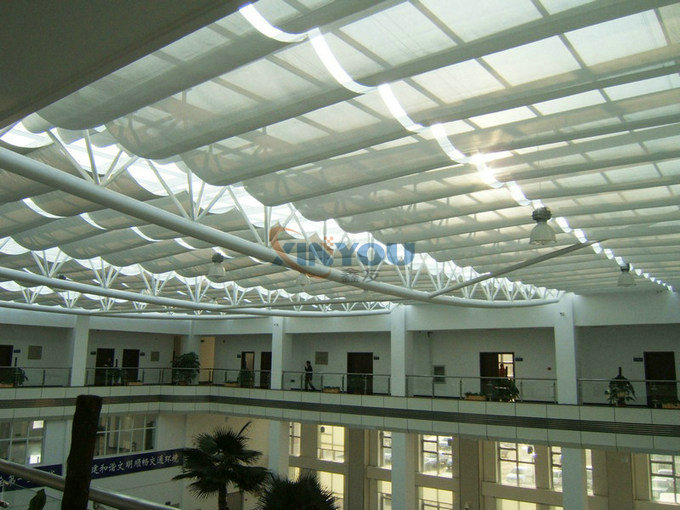

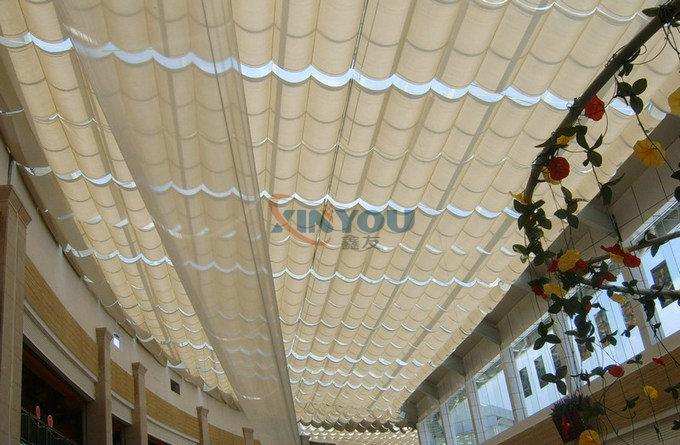

Application: Large sunshade project, such as business center, Department store, gymnasium etc.

型號

電源

功率

力矩

轉速

行程

XY50A-6/22

220V 50HZ

90W

6Nm

22rpm

32/42圈

XY50A-12/22

220V 50HZ

120W

12Nm

22rpm

32/42圈

XY50B-6/22

220V 50HZ

90W

6Nm

22rpm

32/42圈

XY50B-12/22

220V 50HZ

120W

12Nm

22rpm

32/42圈

XY50-6/17

220V 50HZ

90W

6Nm

17rpm

46圈
